Open the steam cock, the water in the glass should fall to the level of the water in the boiler. Boiler gauge glass blow through procedure. Explanation with Image. Boiler gauge glas. Close off cocks 'S' and 'W' and open drain 'D'. Make sure both water and steam cocks are holding. Open cock 'W' and blow through.

Know The Procedure For Boiler Gauge Glass Blow Through Marine Engineers Knowledge vlr.eng.br

Boiler Blow Down OR Blow Through Procedure • shut steam side• Shut water side• open the drain at the bottom then gauge glass becomes empty.• then open the.

BLOWDOWN IN GAUGE GLASSNORMAL BLOWDOWNCROSS BLOW DOWN PROCEDURE(PART3) YouTube

Boiler Gauge Glass Blow Down Procedure. Here are the steps that you will follow, when blowing down the boiler gauge glass: 1) Make sure that you have worn the protective gear like goggles and gloves. 2) Shut the steam, and water cock for the gauge glass, 3) Drain it by opening it slowly. If the water is still coming, that means, water cock is.

GAUGE GLASS IN BOILERMATERIALTYPEOPERATION(PART1) YouTube

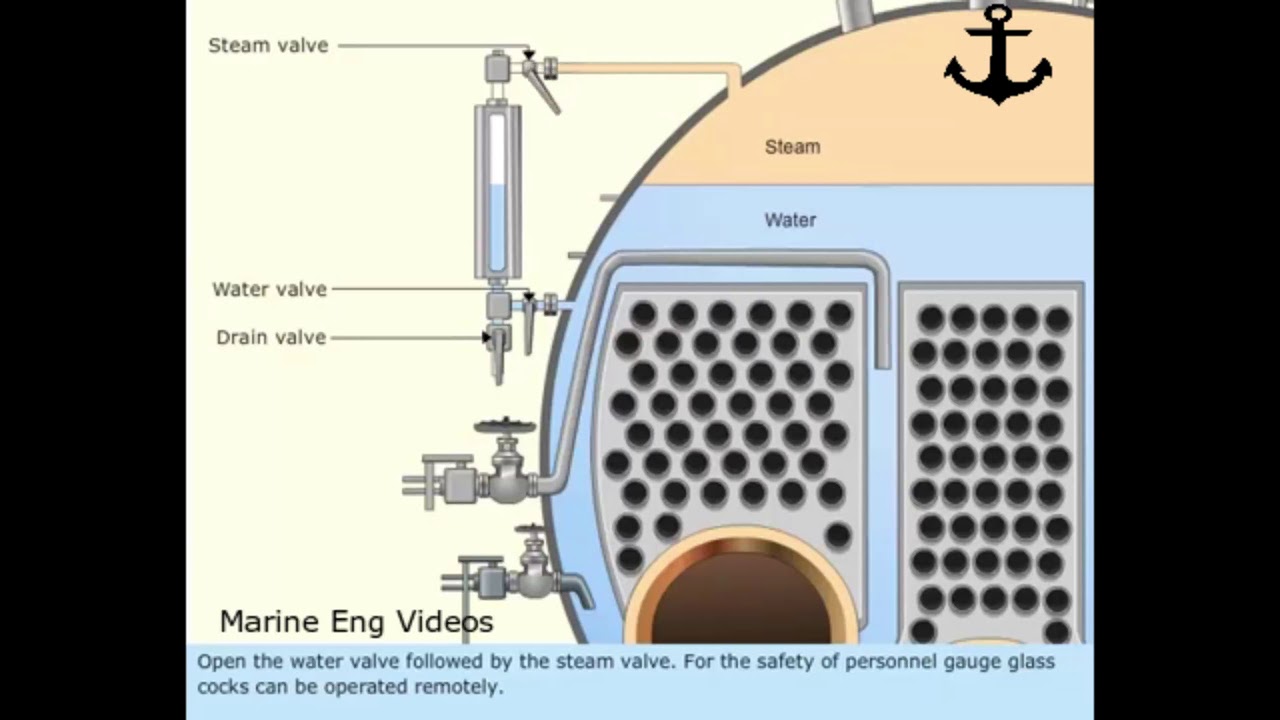

Open cock 'S' and blow through. Make sure that steam is coming out and cock 'S' is clear. Close steam cock. Close drain 'D'. Open water cock 'W' and check water level rises in the glass. Open steam cock 'S' for showing boiler water level. The glasses should be kept clean. The glands should be nipped up at the first sign of.

Why do we change the boiler gauge glass? Quora

Proper blow through of gauge glass is to be carried out at frequent intervals and if any doubt existsabout the accuracy of the reading indicated by the gauge.

Boiler Gauge Glass Blow Down YouTube

#marineboiler #blowthroughprocedurecredits - Adu Academy

Boiler Gauge Glass Blowdown Procedure Explained saVRee

If the water cock is open and steam cock closed water from the boiler will channel into the gauge glass and fill indicating a false high water level. Since there is no steam inlet to the gauge class a differential pressure is set up between the water in the boiler and that in the gauge glass .

Boiler Boiler Gauge Glass

Proper maintenance of water level instruments on a boiler is crucial to keeping your plant running safely and efficiently, at all times. Conduct blowdowns on gage glasses periodically in accordance with plant rules and the recommended manufacturers procedures. Be aware that excessive blowdowns may cause premature wear of the gage glass and.

Boiler Gauge Glass and Boiler Fittings SY Befur

In this video, we have nicely explained you the Boiler Gauge Glass Blow Through Procedure and hence after watching this video you will get a complete idea of.

Boiler [Part 2], Water Level Indicator (Gauge Glass) YouTube

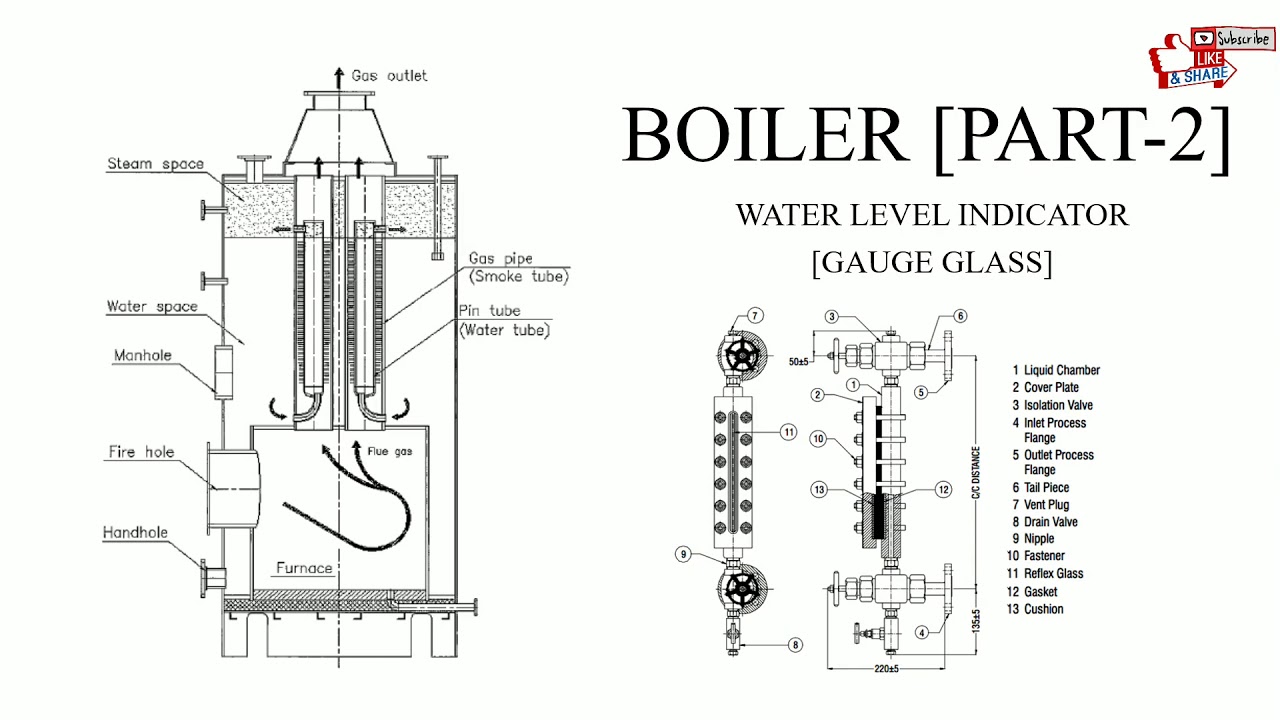

Boiler [Part 2], Water Level Indicator (Gauge Glass) Marine Boiler. Marine boiler water level indicator regulations, type of gauge glass, tubular type water gauge glass, boiler gauge glass overhaul procedure, safeties of boiler gauge glass, procedure for blow through of boiler Gauge Glass on Ships, cross blowing.

BOILER GAUGE GLASS BLOWDOWN PROCEDURE TAMIL KARAN DESINGU YouTube

Putting the gauge glass in normal operating position. Close all the valves S, W and the drain valve D. Now open the cock W and let the water fill inside the gauge glass. Now open the cock S and then the level can be seen as the pressure equalizes. Disclaimer :The information contained in this website is for general information purposes only.

Procedure for Boiler Gauge Glass Maintenance on a Ship

Gauge Glass Basics. 143 McDonough arkway, McDonough, GA 30253 www.boilersupplies.com (800) 80-3776 pg.2. Gauge Glass Basics. A gauge or sight glass is a clear glass tube connected between the top. and bottom of a boiler or other pressurized liquid tank. It is connected such that the level of the liquid in the sight glass is equal to the liquid.

Round Reflex boiler water level gauge glass, Color Transparent at Rs 159 / Piece in Bhuj

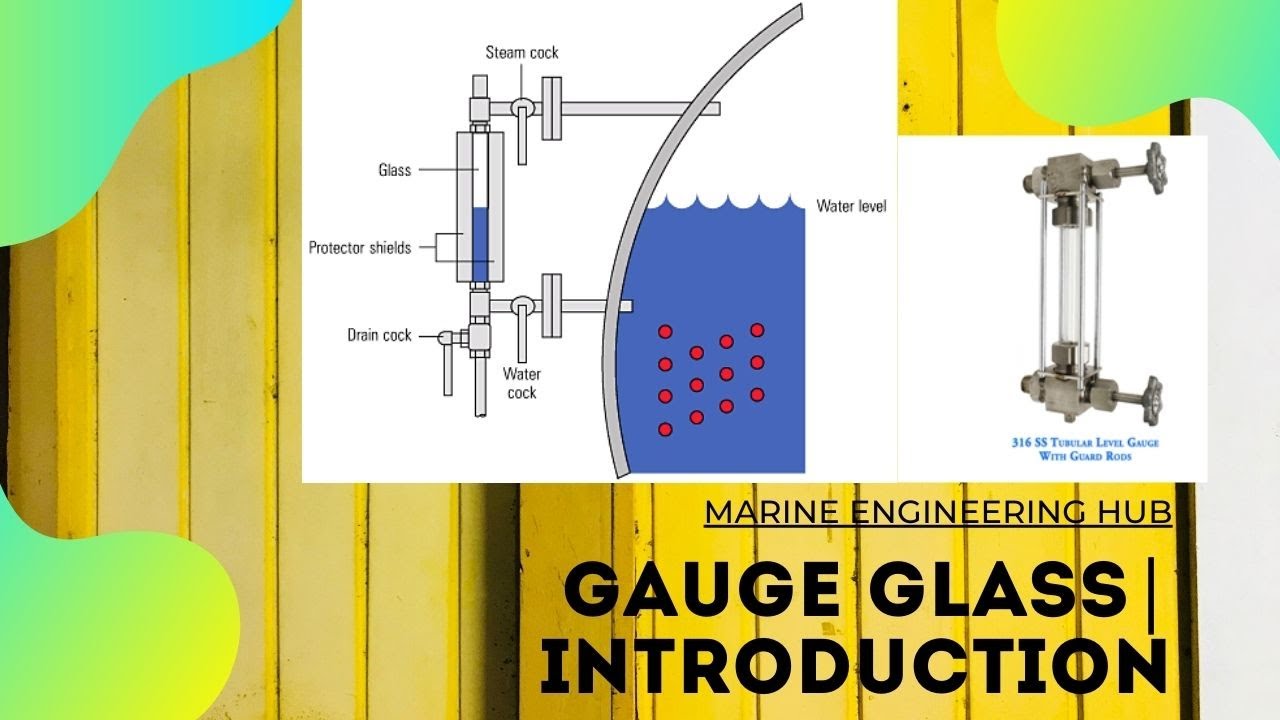

The double plate type gauge glass is held under compression using a nut and bolt arrangement. The glass pieces sit upon joints and a mica sheet separates the glass from the water/steam. Due to the elevated pressures and temperatures the double plate type glass plates are exposed to, it is necessary to add a mica sheet between the glass and.

Boiler Gauge Glass Blowing Through Procedure YouTube

Blow through of gauge glass should be carried out on daily basis. First shut the steam side. Second shut the water side. Open the drain cock at the bottom. Now wait till gauge glass became empty. Open the steam side, let the steam drains and clears the steam side. Close the steam side and open the water side, let the water drains completely and.

Boiler Gauge Glass Blowdown Procedure Explained saVRee

Open the water cock side, blow out the water. Close the water cock side, the water connection is clear. Close the drain cock. Open the water cock, water should then gradually come rise up to the top of the gauge glass. Open the steam cock, the water in the glass should fall to the level of the water in the boiler.

IBR Boiler Reflex Gauge Glass, For Industrial at Rs 19000/piece in Chennai ID 20466223633

Hello,In this video I will be explaining you about the procedure to follow for blow through of boiler gauge glass.Recommended Blowdown Procedure for Boiler L.
